1.3mm PVC Laminated Tarpaulin – LPT1113/1625
1.3mm PVC Laminated Tarpaulin – LPT1113/1625

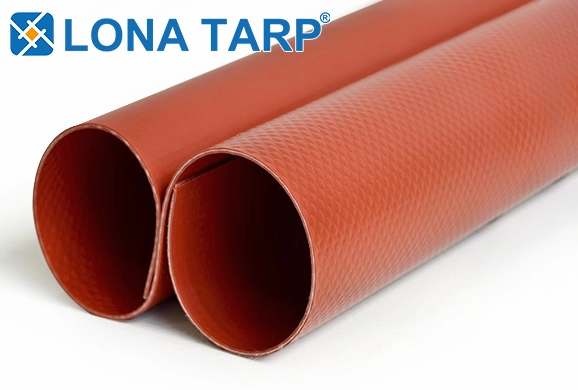

Introducing our 1625gsm brown vinyl-coated tarpaulin, engineered specifically for manufacturing industrial-grade PVC flexible water tanks. Its robust foundation is a 1300Dx1500D polyester base fabric with a 30×26 weave density, ensuring exceptional tensile strength and durability for demanding applications.
This material delivers superior barrier and sealing properties, outstanding resistance to chemical corrosion, and excellent adaptability to harsh environmental conditions. It provides a reliable and high-performance solution for your PVC flexible water tank production, guaranteeing the safe and secure transportation of a wide range of liquid cargoes.
Fire Retardant
Weldable
Tear Resistant
Anti-UV
Weather Ability
Longlife Time
LonaTarp® 1.3mm PVC Flexible Water Tank Product Specifications
| Fabric Properties | Parameters | Testing Method |
| ■ Technical properties | ||
| Total Weight | 1625 Gsm/m² 45 OZ/YD² | DIN53352/ BS3424 |
| Base Fabric | 100%PES 1300x1500D 30*26/inch | DIN EN ISO2060/ DIN53853 |
| Tensile Strength (warp/weft) | 5189/4572 N/5cm | ISO1421 |
| Tear Strength (warp/weft) | 1097/1054 N/5cm | DIN 53363 |
| Adhesion | ＞170 N/5cm | DIN 53357 |
| Temperature Resistance | -30℃ / +70℃ | DIN53372 |
| Number of Flexes | >50,000 | DIN53359A |
| Flammability(Optional) | DIN4102:B1, NFPA701, M2 | |
| Max Width | 3.2M (10.50Feet) | |
| Application | Flexible Tank | |
| All technical data set out above are for product information purposes only and not legally binding, and will cease to apply with any further development of the products. The most recent technical data will be provided by LonaTarp® on request. Please note that the technical data as set out above are average values only. All values are generated through tests by established laboratories in accordance with industry standards. Results may vary if testing is executed by different laboratories or due to different standard interpretation. All technical data apply to new products only. Deviations may occur due to production procedures. | ||
